24V 300W Mini peltier thermoelectric air cooler with heatsink

FOB Reference Price:Get Latest Price
$50.00 - $200.00 / Piece | 1 Piece/Pieces (Min. Order)
Power:
24/48v
Report Suspicious Activity
Overview
Quick Details
Warranty:
1 year
After-sales Service Provided:
Video technical support, Field maintenance and repair service, Online support, Engineers available to service machinery overseas
Applicable Industries:
Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food Shop, Construction works , Energy & Mining, Advertising Company
Cooling Power::
300W
Voltage::
24V
Current::
15A
Operating Temp.::
-10℃ - +70℃
Volume::
small
Certificate::
RoSH
Input::
DC24V, 15A
application::
electrical,telecom cabinet cooling solutions
principle::
Semiconductor electric
Supply Ability
Supply Ability:
500 Piece/Pieces per Week
Packaging & Delivery
Packaging Details
carton box or customized
Port
Shen zhen or Hong kong

24V 300W Mini peltier thermoelectric air cooler without compressor





Product Description



Scope:

Thermoelectric cooler can be widely developed for enclosed area climate control such as telecom, industrial, medical,military and aerospace application areas.



  Features:

  • Using semiconductor electronic cooling, small volume, light weight.
  • No compressor, no Freon, no pollution, no vibration, no leak.
  • Using no pollution material, compliance RoHS
  • Free mounting, applicable to a variety of places.
  • Working ambient temperature: -10C~+50C
  • Dense fin extrusion heat sink, high efficiency
  • High-dense foam insulation between heat sink and cooled heat sink.
  • Hot-side heat sink overheat protection temperature setting +75C± 5 C
  • Applied in sealing, vibration or rotation places such as compressors do not work.



 FD-300W



Specificates:

Item(Th=35℃) Description
Hot SideFan Cooling
Cold SideFan Cooling
Qc max.(W)360W at Dt=0(℃)
Rated PowerDC24V, 15A
Working Temp.-10 ~ 70℃
Temp.ControlOptional






 Part List:

No.PartDESCRIPTIONQTY
1InputDC24V, 18A1
2TEM40x40x4.0mm, Qmax:55W6
3Inside Fan120x120x38mm, 12VDC1
4Outside Fan120x120x38mm, 12VDC2
5Cold Sink150x300x30mm, AL.1
6Heat Sink150x400x30mm, AL.1
7Spacer Block42x42x5mm, AL.6











Advantages:

  • Small size
  • Immediate effect of cooling / heating
  • Achieves low temperatures
  • Easy power control
  • Silent operation
  • Long life (theoretically unlimited)
  • Can direct cooling to a very small area
  • Combination of cooling and heating

Application:

  •  Battery cabinet in telecom
  •  Precise instrumentation
  •  Precise temperature control
  •  Photonics laser systems
  •  Food and Beverage cooling
  •  Medical instrumentation
 FD-300W-1FD-300W-3

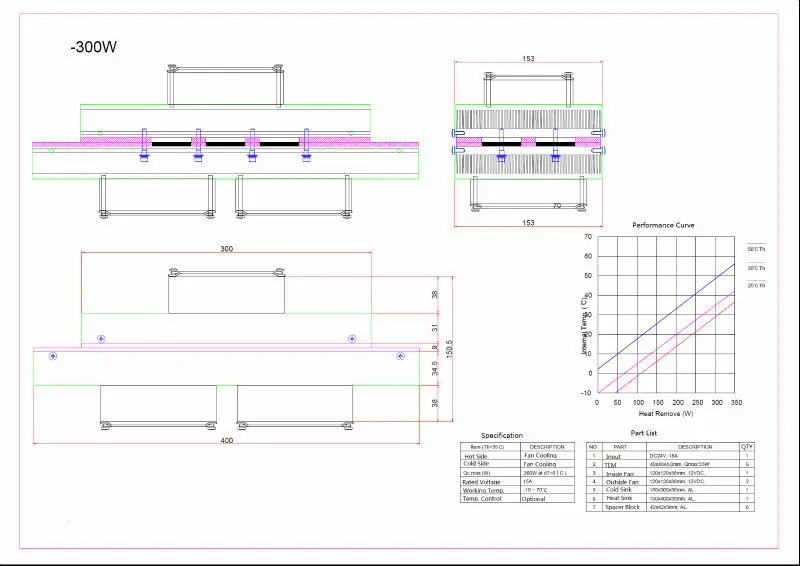

The installation diagram:
---






Our Services

 paste-pic-dp_uuid_b021r

Pre-sales service                                        After-Sales Service

*Inquiy and consulting support                   *Training how to instal the machine

*Sample testing support                            * Training how to use the machine

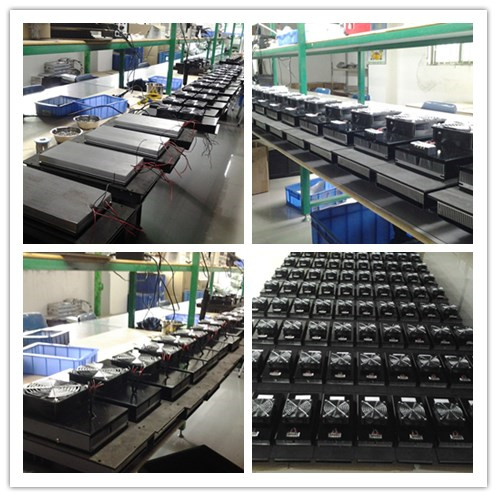

* View our Factory



initpintu_



initpintu_111



Please contact us for details if you have any inquiry.
